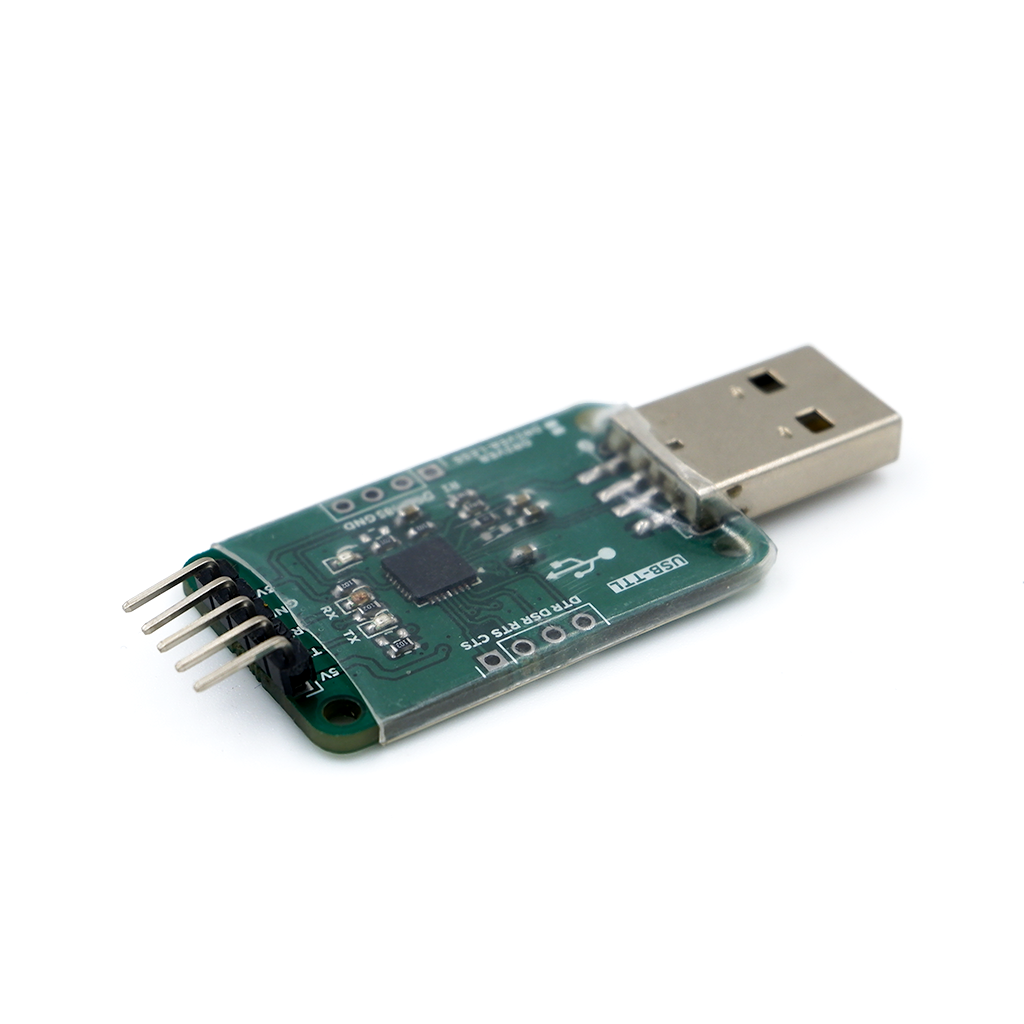

The USB to TTL Converter Module is a compact and reliable serial communication interface designed for developers, makers, and embedded system engineers. It converts USB signals from a computer into TTL-level UART signals, enabling direct communication with glyph, microcontrollers, sensors, and embedded devices.

This module is based on USB-to-serial ICs CP2102 and supports standard UART communication. It is widely used for programming, debugging, and serial monitoring of development boards like Arduino, Glyph STM32, and other TTL-based devices.

Interface Details

Supported Interfaces:

USB 2.0
TTL UART (Serial Communication)

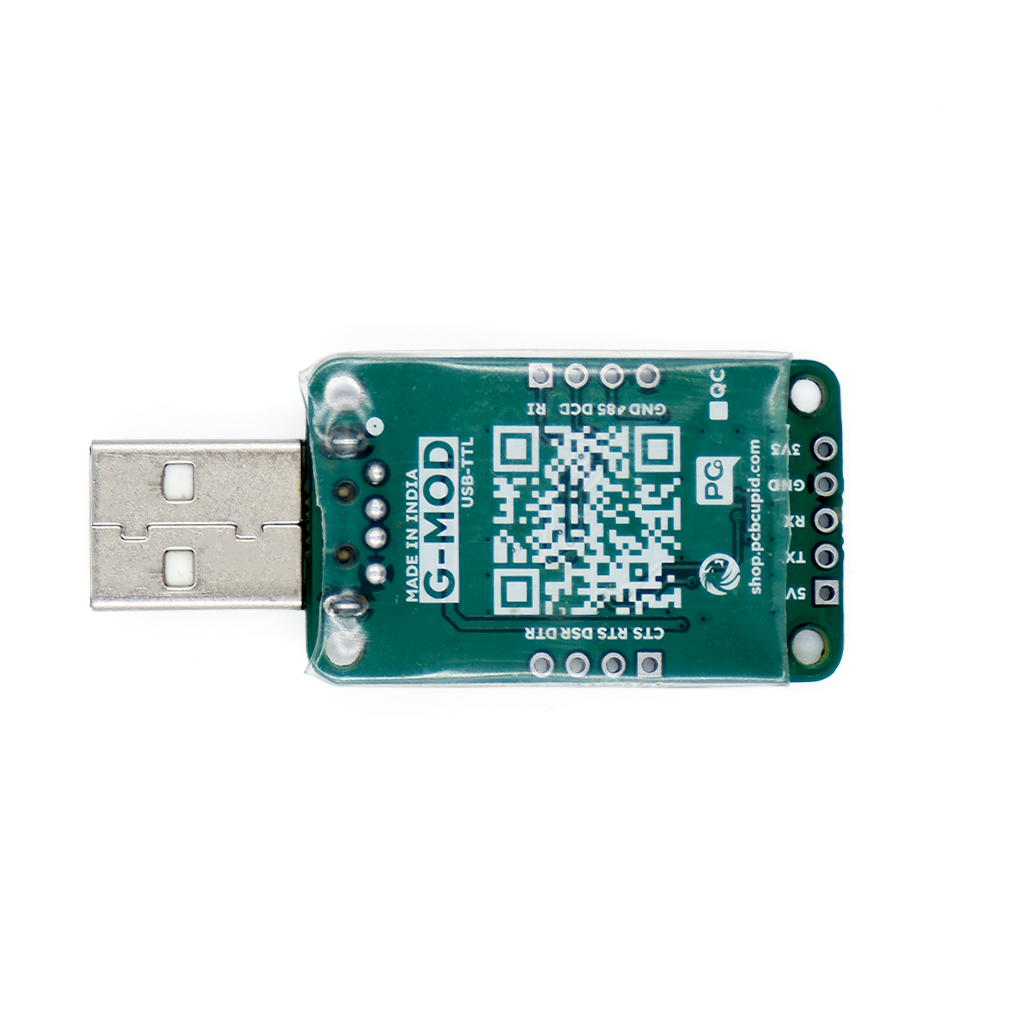

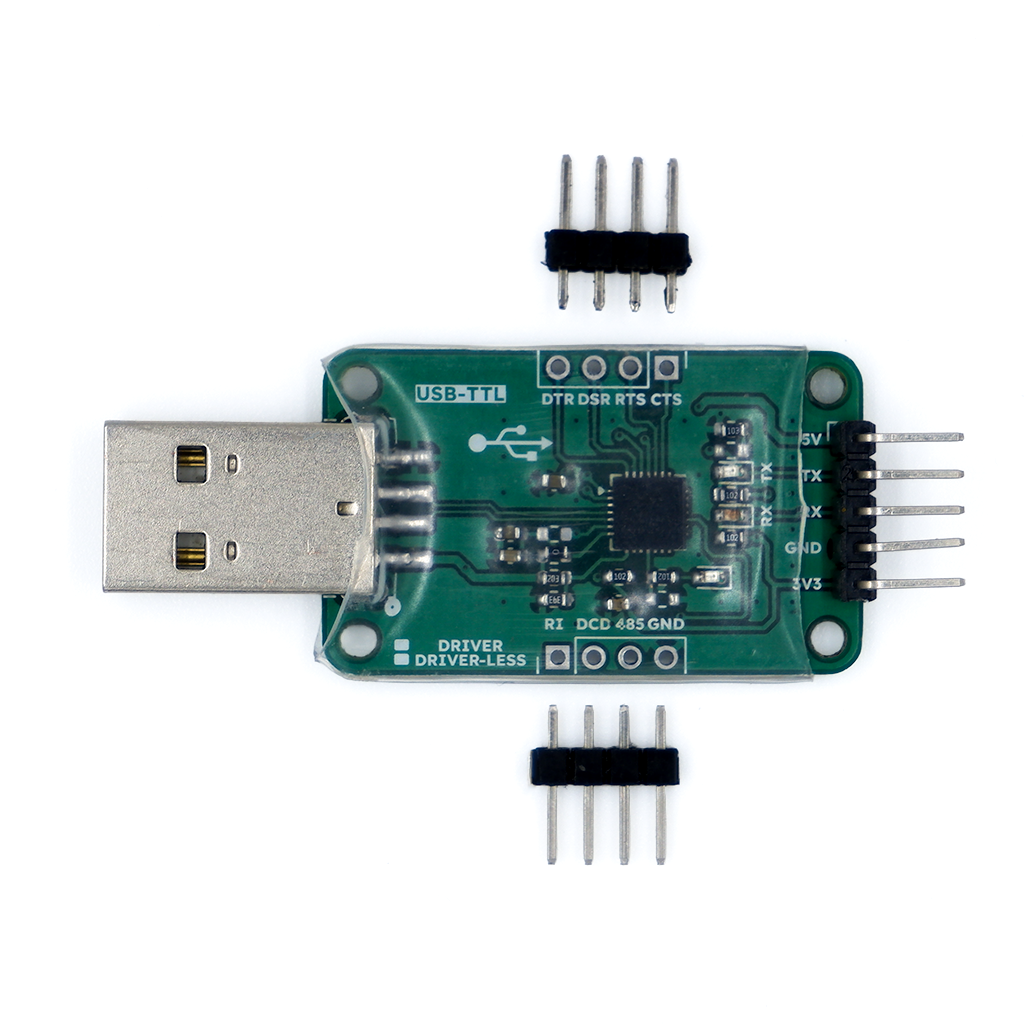

Pin Definition:

5V / 3.3V – Power Output (module dependent)
TX – UART Transmit (TTL)
RX – UART Receive (TTL)
GND – Ground
DTR / RTS / CTS / DSR – Hardware flow control pins

Applications

Microcontroller programming
USB to UART serial communication
ESP8266 / ESP32 flashing and debugging
Arduino serial monitoring
Embedded system development
Firmware upload and testing

Features

USB to TTL UART signal conversion
Supports 3.3V and 5V logic levels
Plug-and-play USB interface
Onboard USB-to-serial controller
Compact and lightweight PCB design
Ideal for debugging and prototyping

CP2102 USB 2.0 to TTL UART Serial Converter Module
