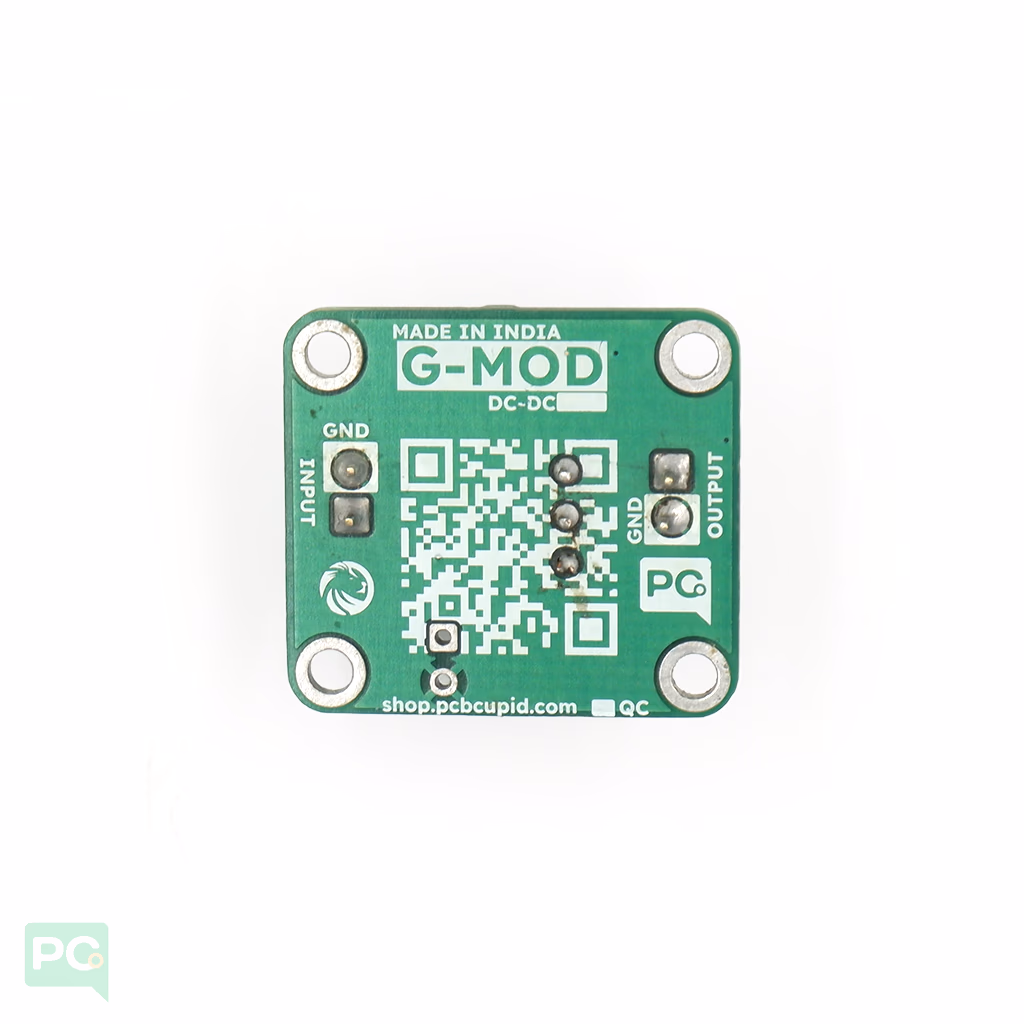

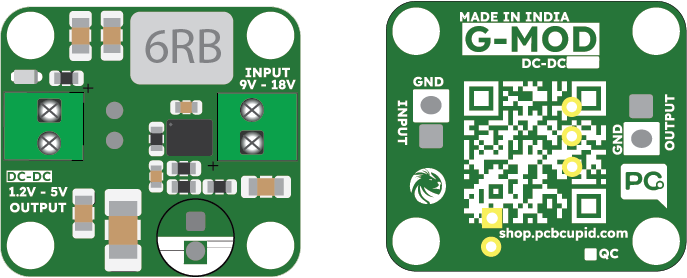

The G-MOD : DC-DC Buck Converter Module with SY81103 & Adjustable Output steps a higher DC supply down to a regulated lower voltage using the SY81103 regulator. The adjustable board shown uses an onboard trimmer to set the output.
It provides a compact power stage for microcontroller circuits, sensors and other low-voltage loads supplied from a higher-voltage DC source.
For wiring and setup, refer to the Documentation.
| Parameter | Operating Range |
|---|---|
| Input Voltage (V_IN) | 9.0V – 18.0V DC |
| Output Voltage (V_OUT) | 1.2V – 5.0V DC (Variable) / 3.3V & 5V (Fixed) |
| Output Current | Up to 3.0A |
| Switching Frequency | 500 kHz |
| Peak Efficiency | Up to 95% |
| Integrated IC | SY81103 |
Measure and set the output before connecting the load. The documentation also covers fixed 3.3V and 5V versions; confirm the fitted board configuration. Available current depends on voltage conversion and cooling.
