G-Sense : Capacitive Touch Slider (CAP1203 Based)

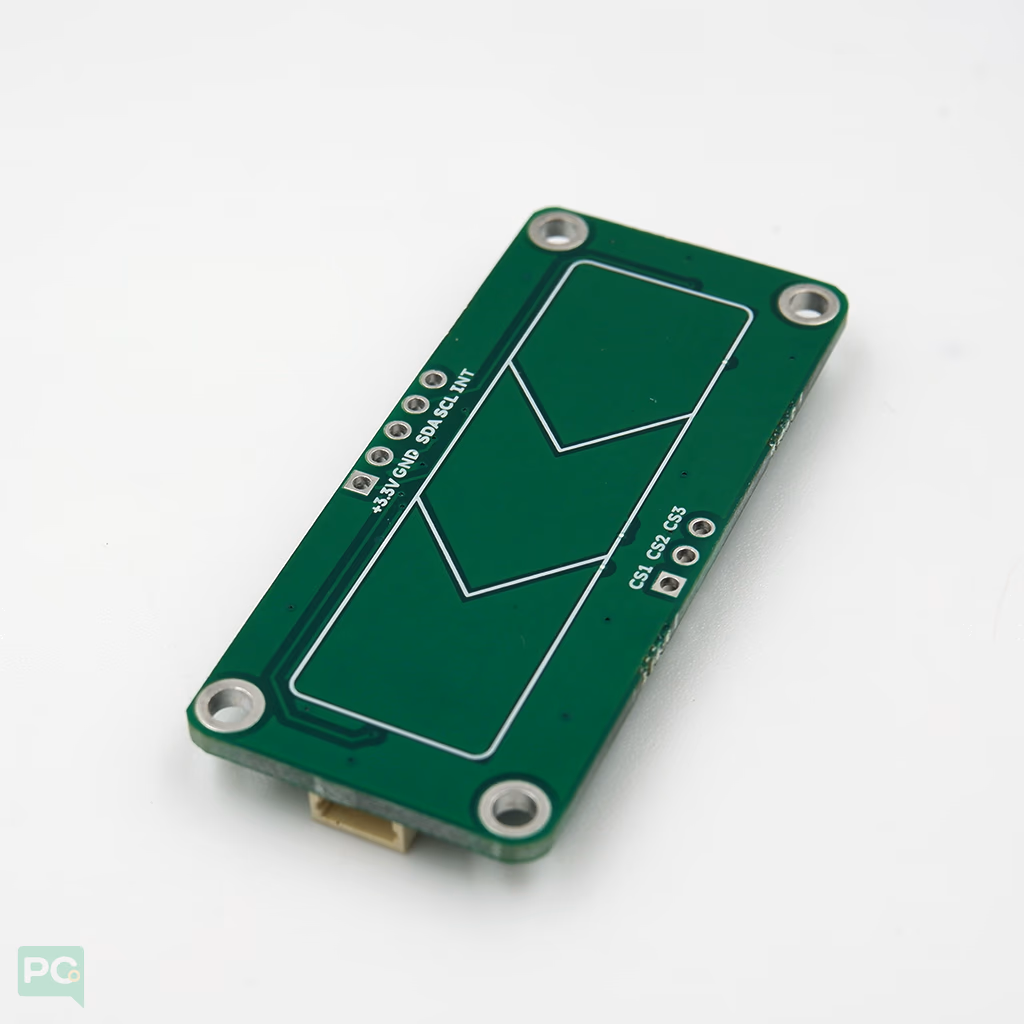

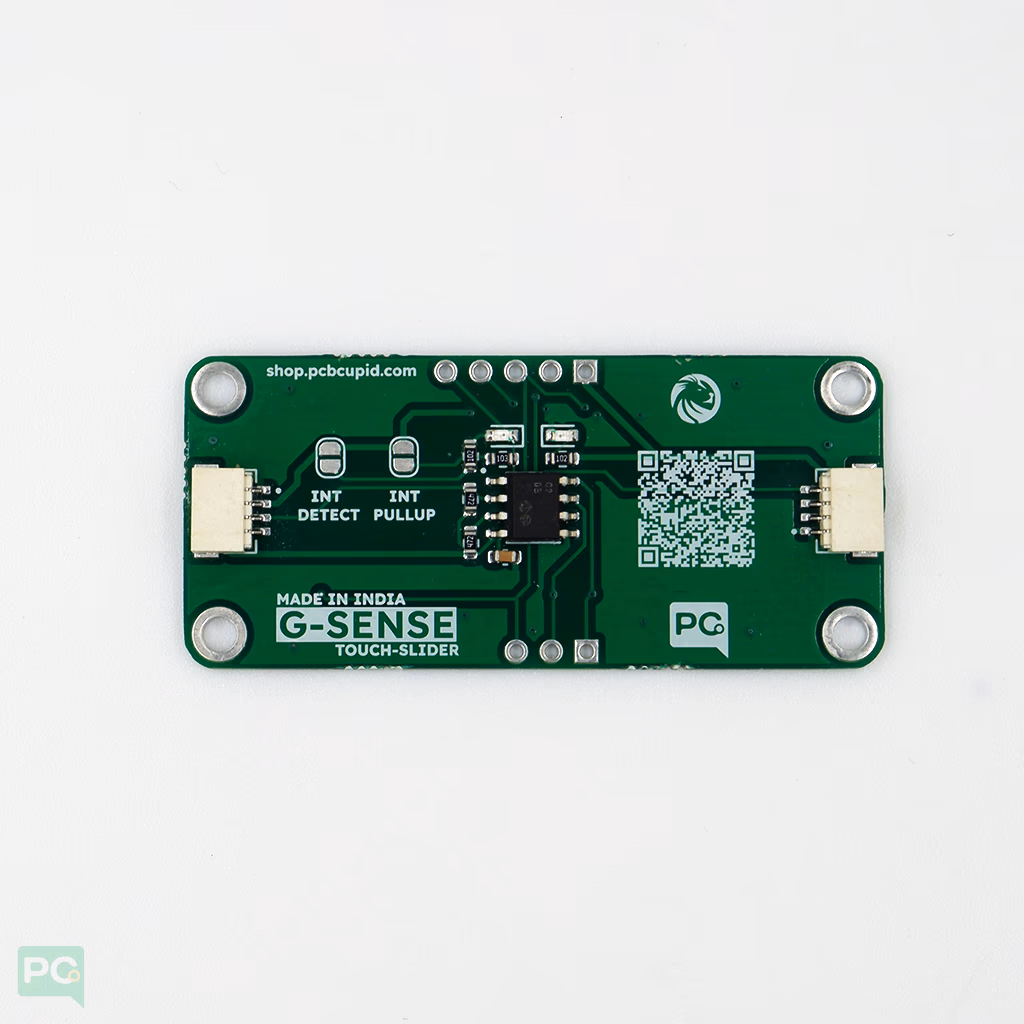

The G-Sense Touch Slider is an intuitive capacitive touch input module based on the CAP1203 sensor. It provides three independent capacitive touch inputs, which can be used individually as buttons or combined into a slider interface.
Designed for ease of integration, the module can act as a simple replacement for physical buttons or sliders in DIY projects, interactive art installations, robotics, consumer electronics, and IoT devices.
With built-in sensitivity adjustment, interrupt output, and LED indicator support, this board offers a versatile and engaging human-machine interface solution.

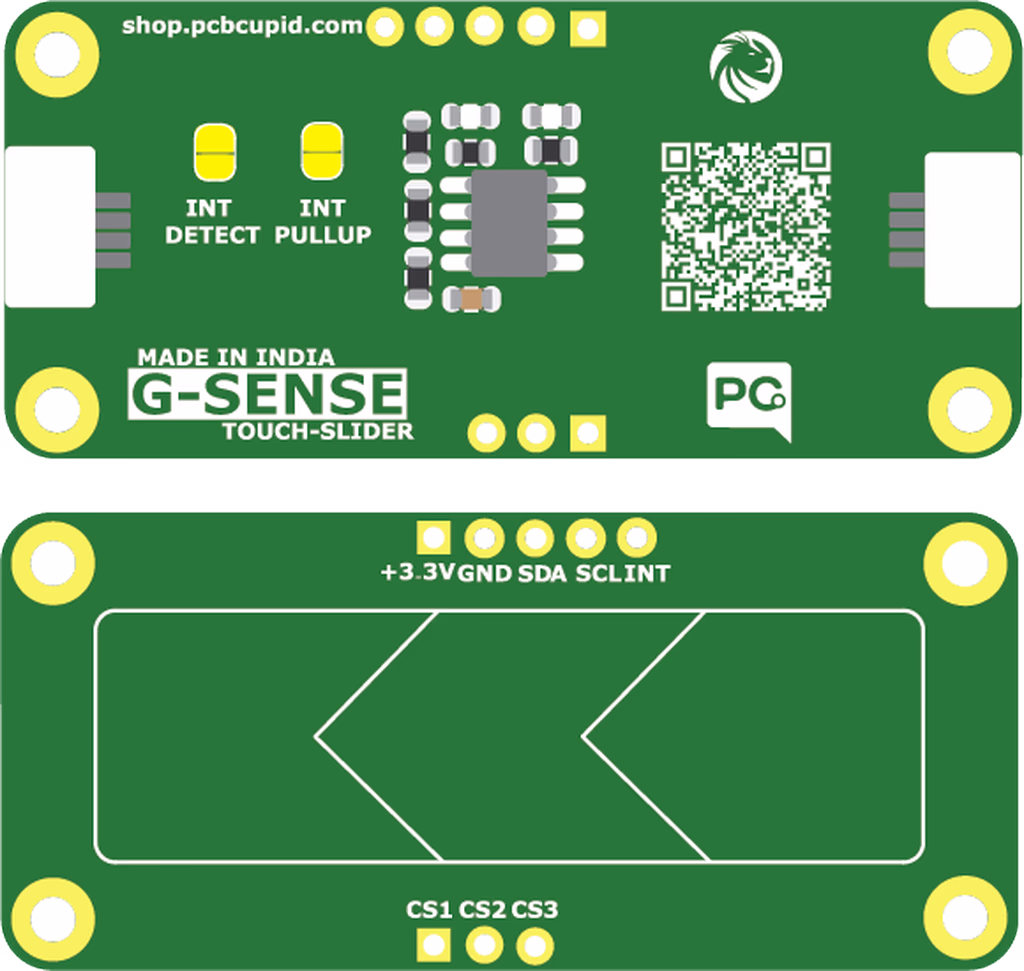

Interface definition
- VCC: Input power supply (3.3V to 5V)
- GND: Power ground
- SDA: I²C data line
- SCL: I²C clock line
- CS1 / CS2 / CS3: Capacitive sensor lines (left, middle, right pads)
- INT : Interrupt output pin (active LOW)
ICS-43434 connection with ESP32 / GLYPH Development Board
- SDA – SDA / GPIO4
- SCL – SCL/GPIO5
- 3.3V – 3.3V
- GND – GND
Features:
- Model- CAP1203
- 3 unique capacitive touch inputs
- Emulated slider
- Power button setting
- Programmable sensitivity
- Automatic recalibration
- I2C Address: 0x28
- Supply Voltage: 3.3V – 5V
