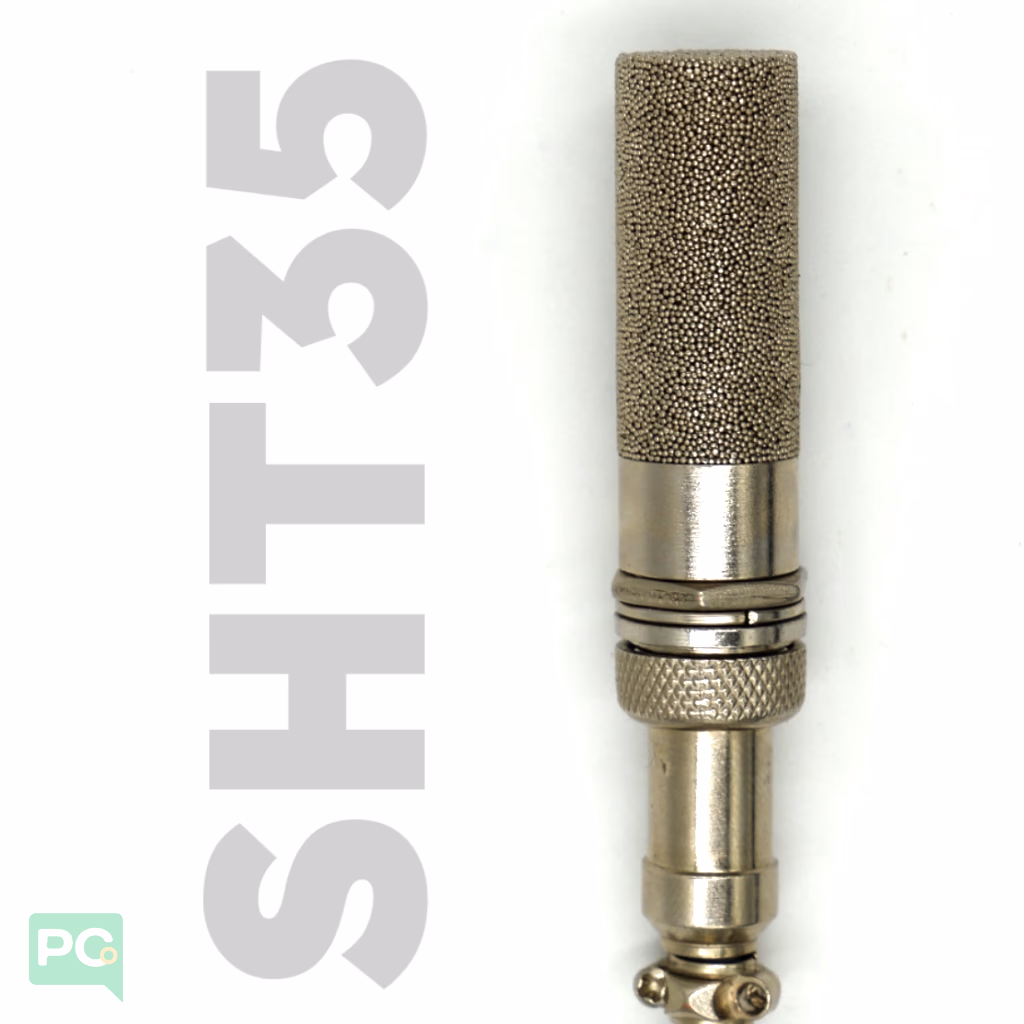

G-Sense : SHT35 Industrial Humidity and Temperature Sensor Probe
SHT35 is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor
chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT35-DIS has increased intelligence,
reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal
processing and communication speeds of up to 1 MHz.
Additionally, the wide supply voltage range of 2.15 V to 5.5 V guarantees compatibility with diverse assembly situations.
You can find more details about this board here : GSense-SHT35 Documentation

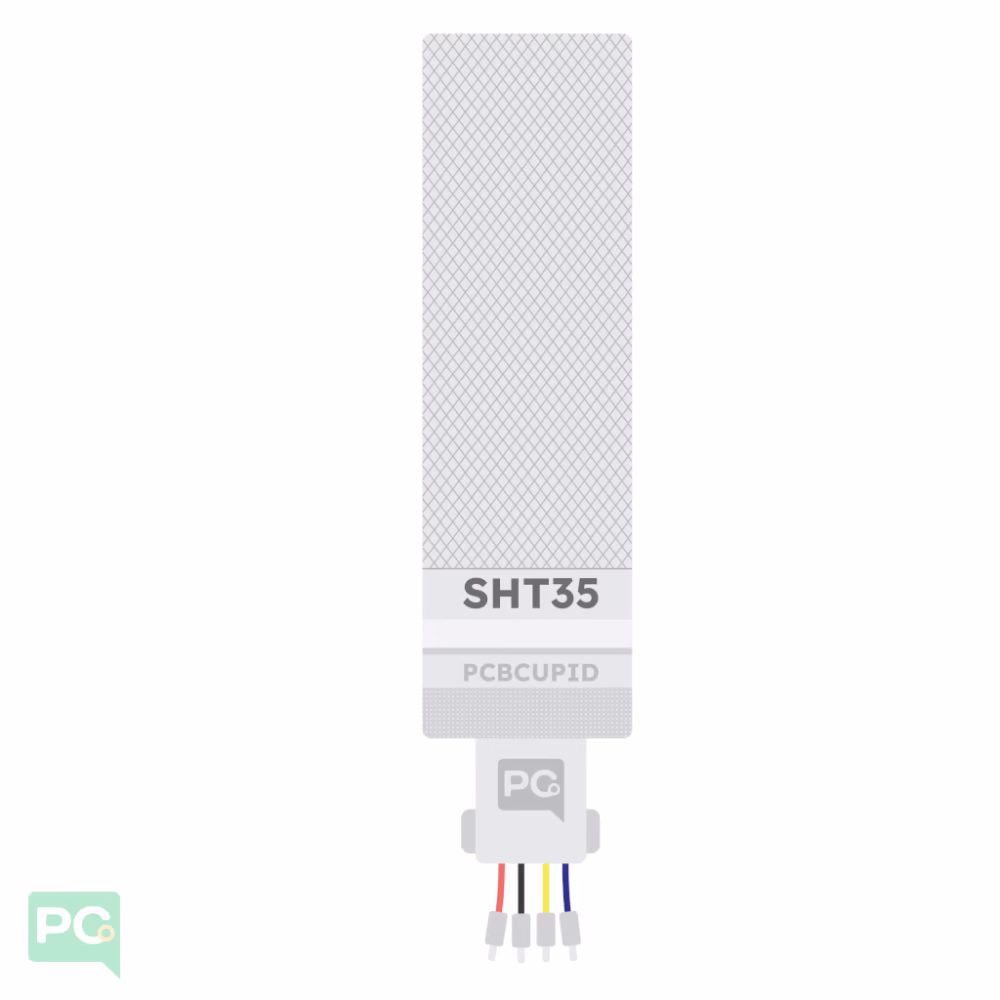

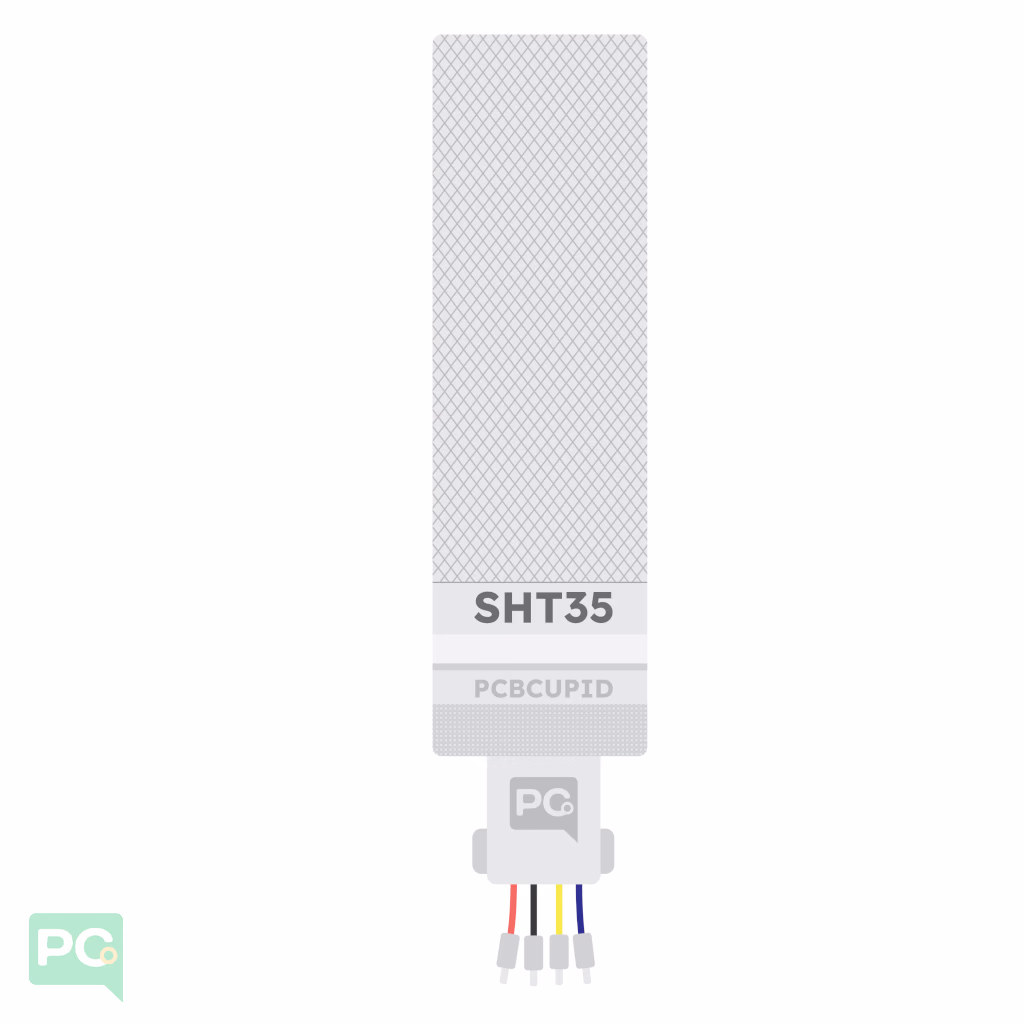

Interface definition
- VCC – RED
- GND – BLACK
- SCL – YELLOW
- SDA – BLUE

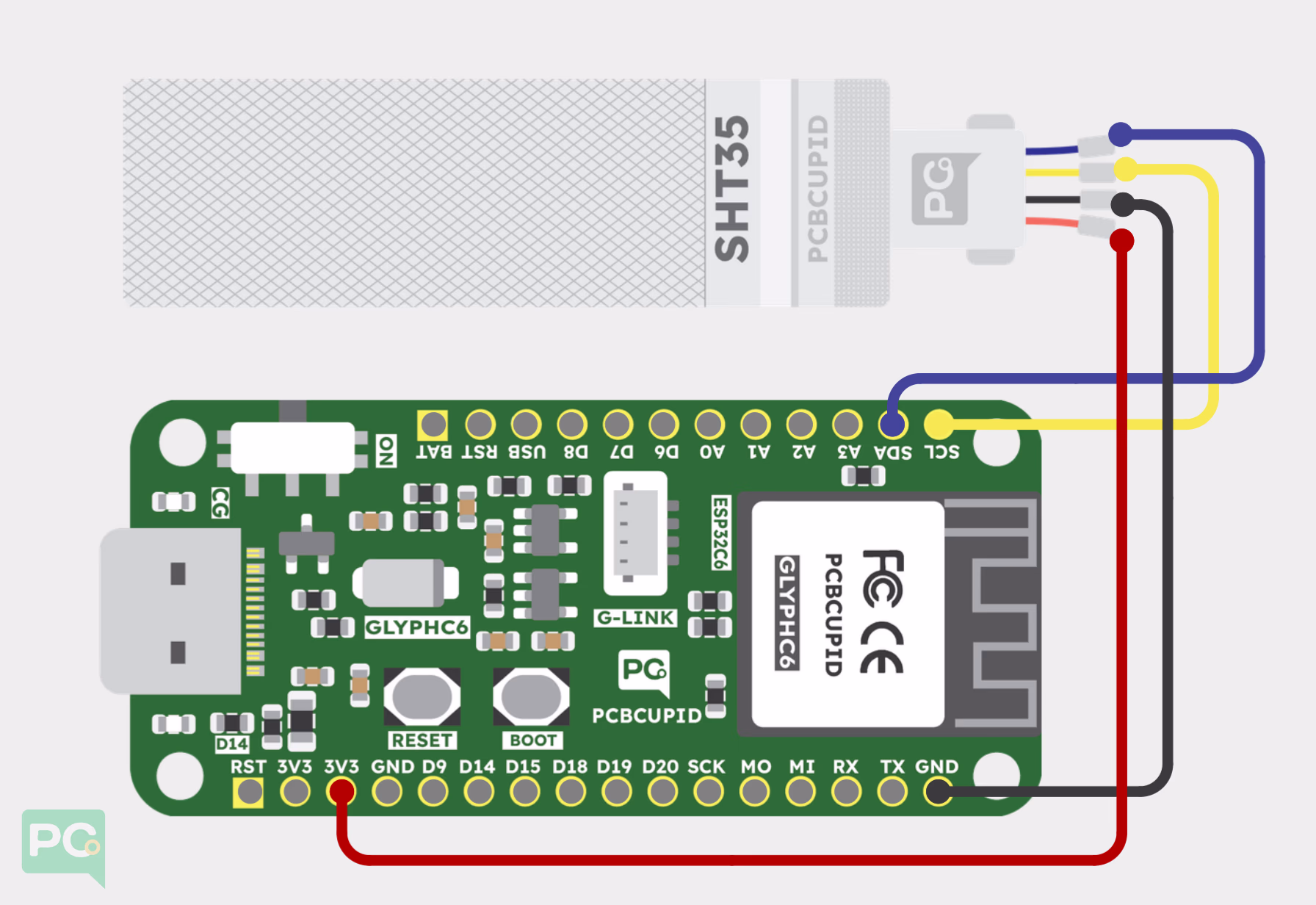

SHT35 connection with GLYPH Development Board
- VCC – 3.3V
- GND – GND
- SDA– GPIO4 (SDA)
- SCL – GPIO5 (SCL)
Features:
- Calibrated & linearized
- Temperature compensated
- Voltage : 2.15 V to 5.5 V
- I2C speeds up to 1 MHz
- Two user selectable addresses
- Acc : 1.5 %RH and 0.1 °C
- Very fast start-up
