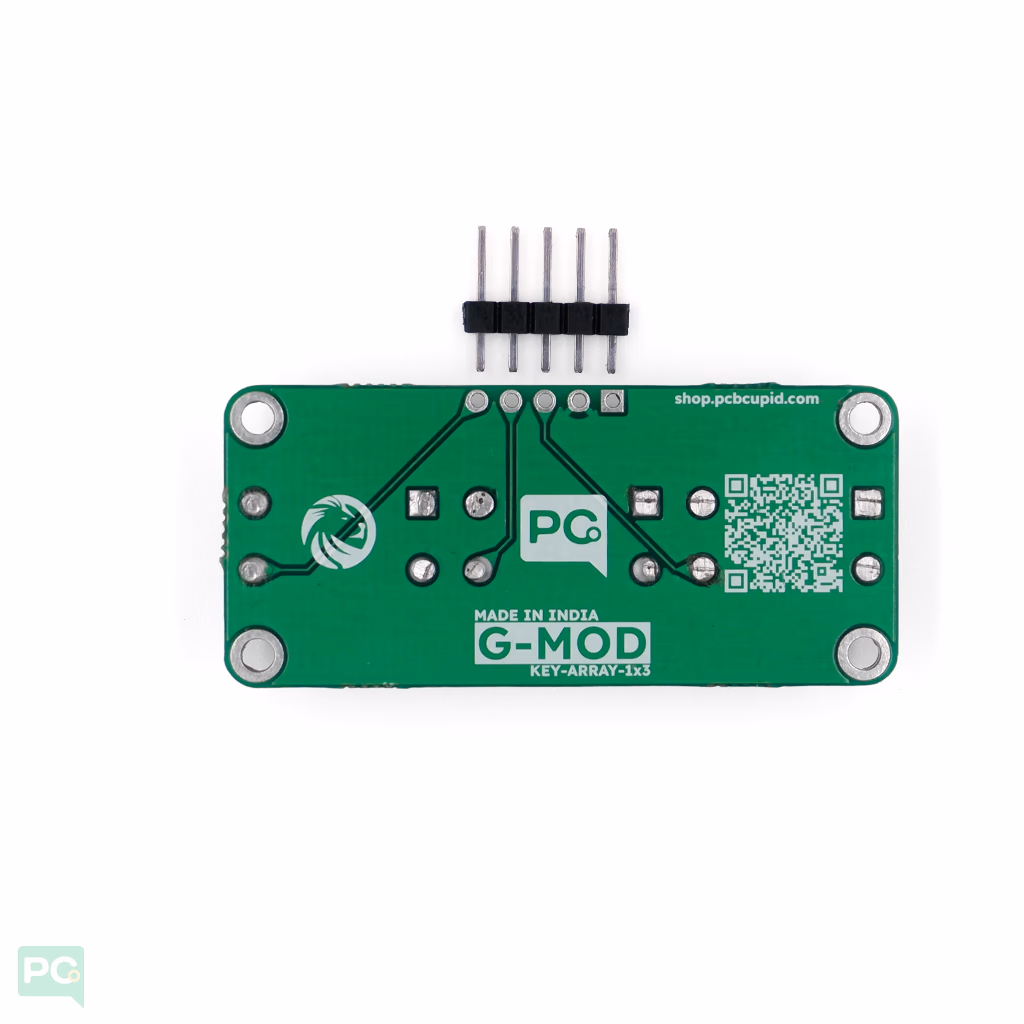

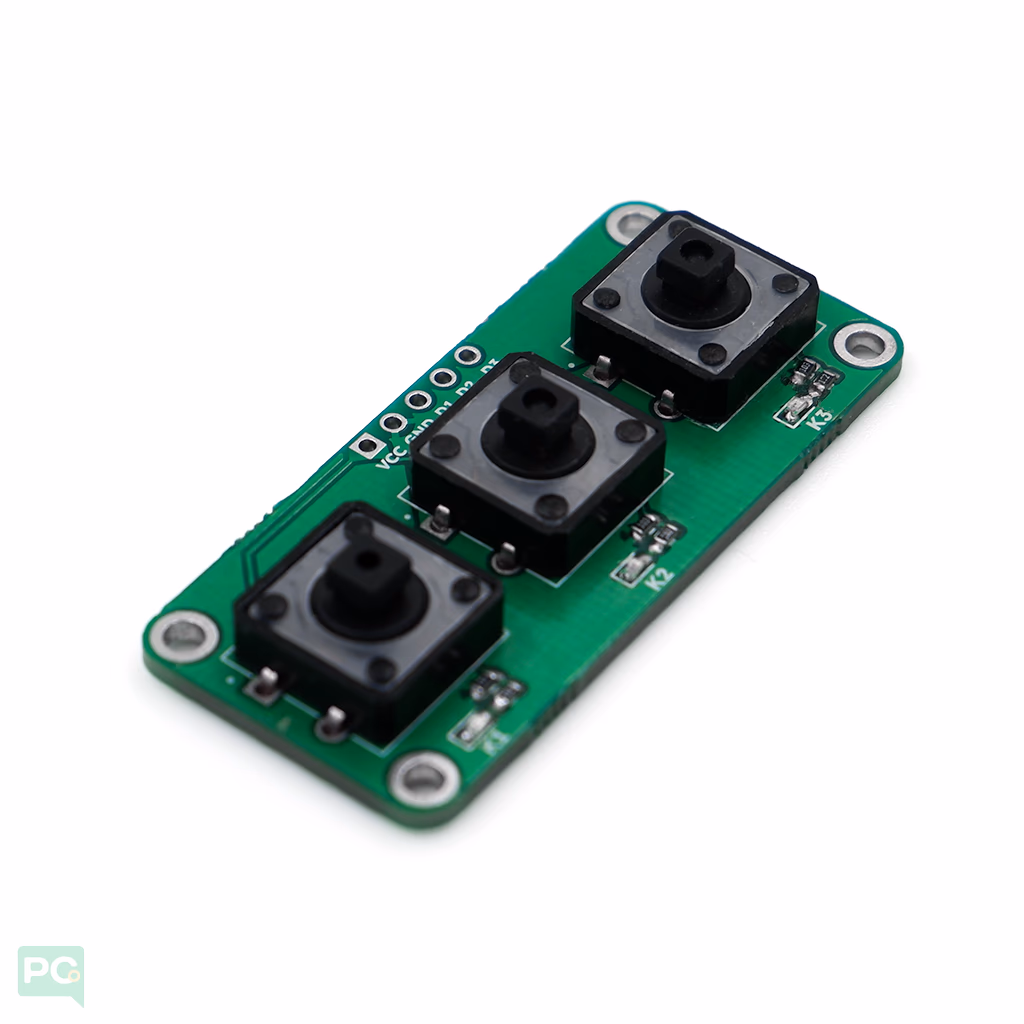

The 1×3 Button Array Module is a compact and easy-to-use input interface designed for developers, makers, and embedded system engineers. It features three tactile push buttons arranged in a single row, providing a simple and reliable way to add user input functionality to embedded projects.

Each button is connected to its own signal line, allowing individual digital input reading from a microcontroller. With clearly labeled pins, onboard resistors, and mounting holes, this module is well suited for quick prototyping and integration with platforms such as Arduino, ESP32, STM32, and other microcontroller-based systems.

Interface Details

Supported Interfaces:

Digital GPIO (individual button inputs)

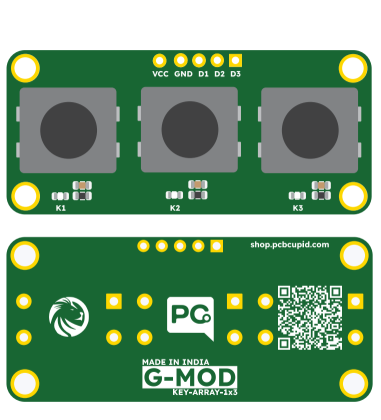

Pin Definition :

VCC – Power Supply (3.3V / 5V)
GND – Ground
D1 – Button 1 Output
D2 – Button 2 Output
D3 – Button 3 Output

Applications

User input and control panels
Menu navigation systems
Embedded system interfaces
DIY electronics projects
Arduino / ESP / STM32 applications
Prototyping and testing input logic

Features

1×3 tactile push button array
Independent digital outputs for each button
Supports 3.3V and 5V logic levels
Onboard resistors for stable signal operation
Compact PCB with mounting holes
Simple and reliable user input solution

1×3 Tactile Push Button Key Array Module
